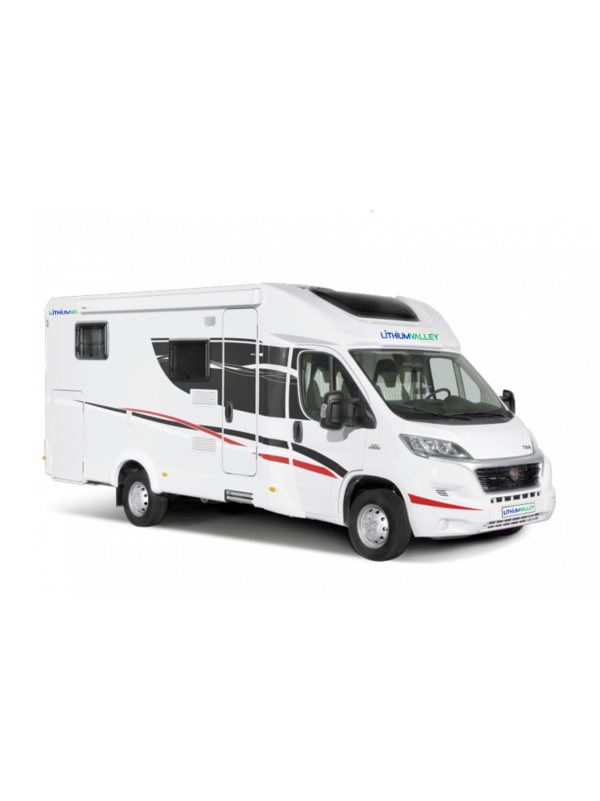

12V RV System
12V RV System

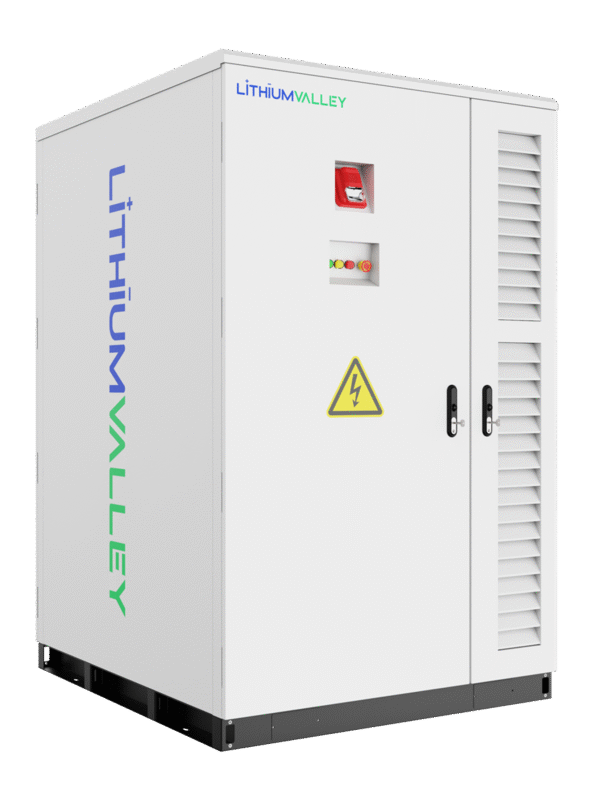

Outdoor C&I Cabinet (Built-in PCS)

The cabinet offers enhanced safety with built-in fire control, temperature regulation, and seamless on-grid/off-grid switching. It integrates BMS, PCS, and EMS, ensuring high efficiency and reliable power supply. The system is fully tested, easy to transport, and supports fast installation for various applications.

Model

SC261L125-01M

Capacity

261kwh

Max. efficiency

125kw

Efficiency

98.78%

Dimensions (WxDxH)

1300×1550×2090mm

Cycle life

≥8000(@25℃,0.5C)

IP Rating

IP54

Certifcation

IEC/EN 61000, IEC 62619, UN38.3, MSDS

Download File
Inquiry/Request a Quote

FEATURES

Safety & Intelligent Control

With built-in fire control, temperature regulation, and seamless on-grid/off-grid switching, safety performance is enhanced.

Multi-system Integration

Integrates BMS, PCS, and EMS to ensure efficient and reliable power supply.

High Efficiency & Easy Deployment

Reaches 98.78% conversion efficiency, fully tested, easy to transport, and supports fast installation for various applications.

Long Lifespan & Strong Protection

Cycle life ≥8000 times (at 25℃, 0.5C), with IP54 protection rating, suitable for outdoor environments.

Compatible List of inverters Brands

:
:
:
:
:
:

RELATED PRODUCTS

12V RV System

RV System is designed for RVs, engineering vehicles, and specialty vehicles, integrating display, control, monitoring, alerts, and protection. Through a user-friendly interface, users can easily monitor system components, receive alerts, control lights, devices, and loads, and personalize settings. It is easy to install, simple to operate, and ensures safety and reliability for enhanced user satisfaction.
Read more

12.8V 100AH

This product has a built-in BMS management system, which can independently realize all kinds of protection as well as protection
Read more

Outdoor C&l Cabinet(External Inverter)

The outdoor energy storage system features a 200.7kWh capacity, integrated BMS, inverter, and MPPT for seamless on/off-grid transitions. It offers dual fire suppression, real-time monitoring, and remote management via a mobile app, ensuring safety, flexibility, and efficient operation across various applications​.
Read more

LV-BST-L2.56Aa（Stackable Battery）

The Lithium Valley LV-BST-L2.56Aa is a versatile, modular energy storage solution for residential use. Designed with flexible assembly and scalable capacity options, it meets various energy storage needs. The built-in intelligent Battery Management System (BMS) continuously optimizes the battery's performance to ensure long-lasting efficiency and safety. With comprehensive protection against overcharging, over-discharging, and extreme temperatures, it guarantees reliable operation in all environments.

Read more

LV4860

The lithium-ion battery packs feature an integrated golf cart battery system, designed to serve as replacements for lead-acid batteries. They
Read more

LV-IESS-Hx_RH5.12x 50kWh Indoor rack-mounted installation

The LiTHIUMVALLEY LV-IESS-Hx_RH5.12x is a 50kWh indoor rack-mount energy storage system (1P series). It features a nominal energy capacity of 50kWh and a nominal voltage of 512V. It utilizes A+-grade lithium iron phosphate cells (3.2V, 100Ah), has a 15-year design life, and a cycle life of 26,000 cycles (@25°C, 0.5C-rate).

The system is equipped with a multi-level BMS for real-time monitoring and early warning, module-level heat absorption and fire extinguishing, and aerosol firefighting. It uses natural cooling with a fan and IP20 protection for indoor environments. It operates between 500V and 584V and has a maximum continuous charge and discharge current of 100A (25°C to 45°C).

Compatible with the "PYLON" protocol and mainstream high-voltage inverters, it supports multi-rack parallel connection. Available in two versions: LV-IESS-H4_RH5.12F (LCD display) and LV-IESS-H3_RH5.12F (indicator light), it is suitable for residential, commercial, industrial off-grid and emergency power supply scenarios.

Read more

    FREQUENTLY ASKED
    QUESTIONS

    Q1: How safe are lithium batteries for energy storage?

    A1: Our lithium batteries are designed with multiple safety features, including overcharge protection, thermal management, and advanced battery management systems (BMS). We prioritize safety by adhering to international standards and offering IP-rated enclosures for maximum reliability and protection.

    Q2: What maintenance is required for lithium battery energy storage systems?

    A2: Lithium batteries require minimal maintenance. Routine checks of the battery management system (BMS) and ensuring proper ventilation for the system are generally sufficient. Our products are designed for easy monitoring and remote management through smart apps for added convenience.

    Q3: Can I expand the capacity of my energy storage system in the future?

    A3: Yes, our lithium energy storage systems are modular and scalable, allowing you to expand the capacity by adding additional battery modules. This flexibility ensures you can meet increasing energy demands over time without replacing the entire system.

    Q4: Are lithium batteries environmentally friendly?

    A4: Yes, lithium batteries are a sustainable option for energy storage. They are highly efficient, have a long lifespan, and can be recycled at the end of their life. Additionally, they help reduce dependence on fossil fuels by enabling renewable energy storage.
