The SafecubeA100A50PT is an intelligent air-cooled all-in-one industrial and commercial energy storage system with 100kWh nominal capacity, powered by A+-grade lithium iron phosphate batteries boasting ≥8,000 cycles (@25°C, 0.5P/0.5P). It integrates multi-stage safety protections – including package/cabinet-level aerosol fire suppression, overcharge/over-discharge/overtemperature guards – and features high integration for easy transport, installation, and flexible capacity configuration. Supporting emergency power, peak shaving, and demand-side management, it comes with a 50kW inverter, IP54 protection, intelligent air cooling, LAN/CAN/RS485 interfaces, and compliance with IEC 62619 standards.
SMILE5 Series system is the bestseller of AlphaESS. It is available for DC-coupling, AC-coupling and hybrid-coupling connection and working with multiple battery options including 2.9kWh, 5.7kWh, 10.1kWh and 13.3kWh battery module. With VPP value stacked, it would be the best choice for householders.
/

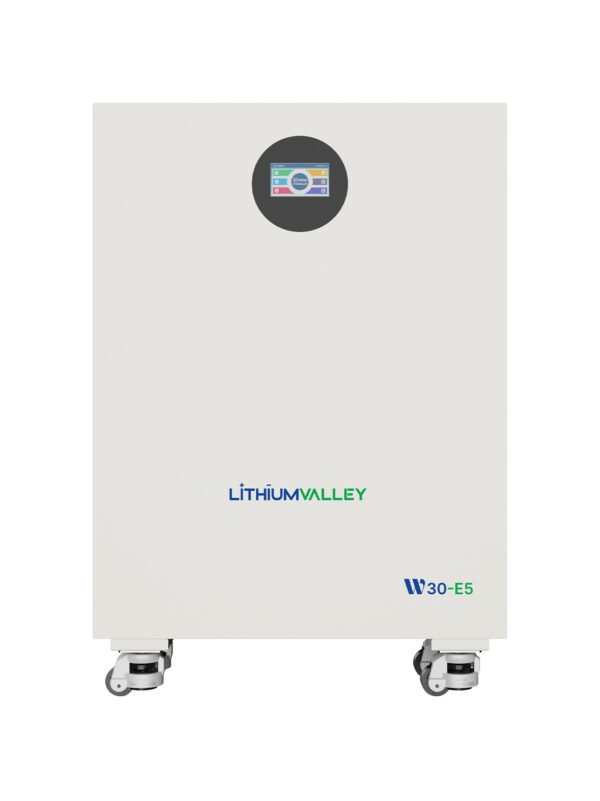

W30-E5 / W32-E5 Home Energy Storage System
Back to products

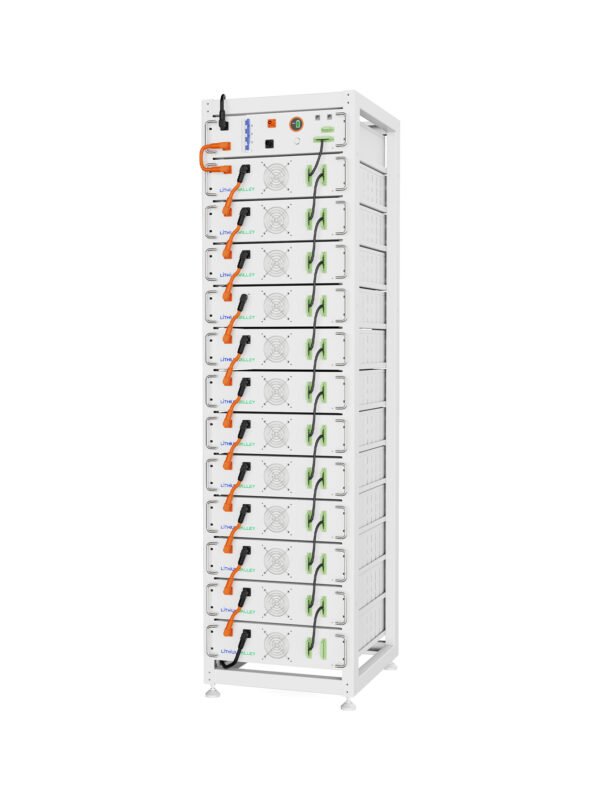

LV-IESS-Hx_RH5.12x 50kWh Indoor rack-mounted installation
The SafecubeA100A50PT is an intelligent air-cooled all-in-one industrial and commercial energy storage system with 100kWh nominal capacity, powered by A+-grade lithium iron phosphate batteries boasting ≥8,000 cycles (@25°C, 0.5P/0.5P). It integrates multi-stage safety protections – including package/cabinet-level aerosol fire suppression, overcharge/over-discharge/overtemperature guards – and features high integration for easy transport, installation, and flexible capacity configuration. Supporting emergency power, peak shaving, and demand-side management, it comes with a 50kW inverter, IP54 protection, intelligent air cooling, LAN/CAN/RS485 interfaces, and compliance with IEC 62619 standards.
Model
SafecubeA100A50PT
Nominal Energy
100kWh
Operating Voltage
280V – 408.8V
Max. allowable input power
50kW
Dimensions (WxDxH)
1310 x 1155 x 2000mm
Output power factor
>0.99(0.8 Leading..0.8 Lagging)
IP Rating
IP54
Standards
IEC 62619, IEC/EN 61000, UN 38.3, MSDS
FEATURES
Core Specs
100kWh intelligent air-cooled all-in-one ESS, with A+-grade LiFePO₄ batteries (cycle life ≥8,000 cycles @25°C, 0.5P/0.5P), compatible with 50kW inverter.
Safety & Protection
Integrates multi-stage protections (aerosol fire suppression, overcharge/over-discharge/overtemperature), IP54 rating, compliant with IEC 62619 and other standards.
Integration & Compatibility
Highly integrated for easy transport/installation, supports LAN/CAN/RS485 communication, operating voltage 280V–408.8V.
Application Scenarios
Suitable for industrial/commercial emergency power, peak shaving; dimensions 1310×1155×2000mm for flexible layout
Compatible List of inverters Brands
