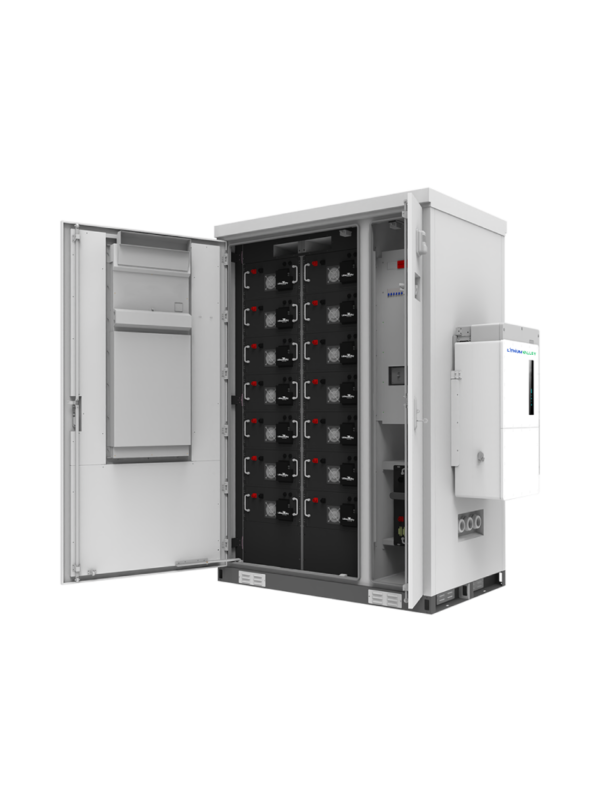

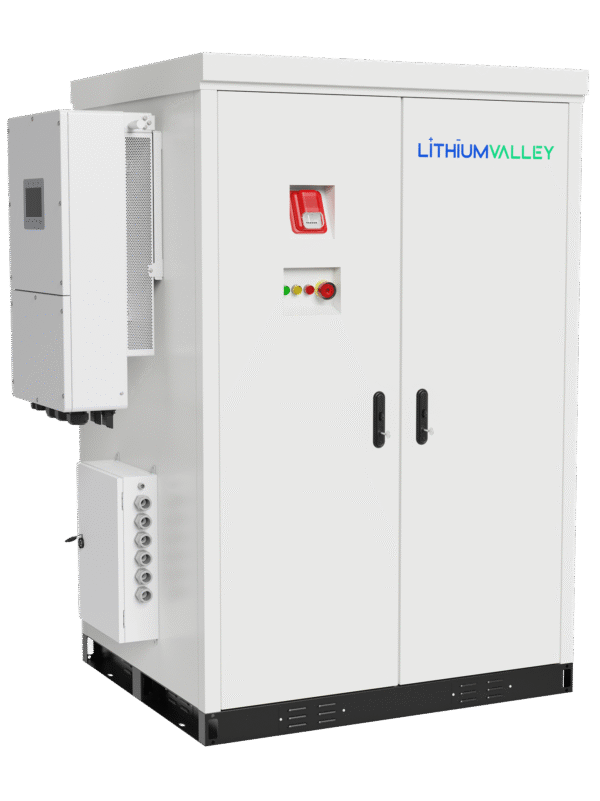

Outdoor C&l Cabinet(External Inverter)
Outdoor C&l Cabinet(External Inverter)

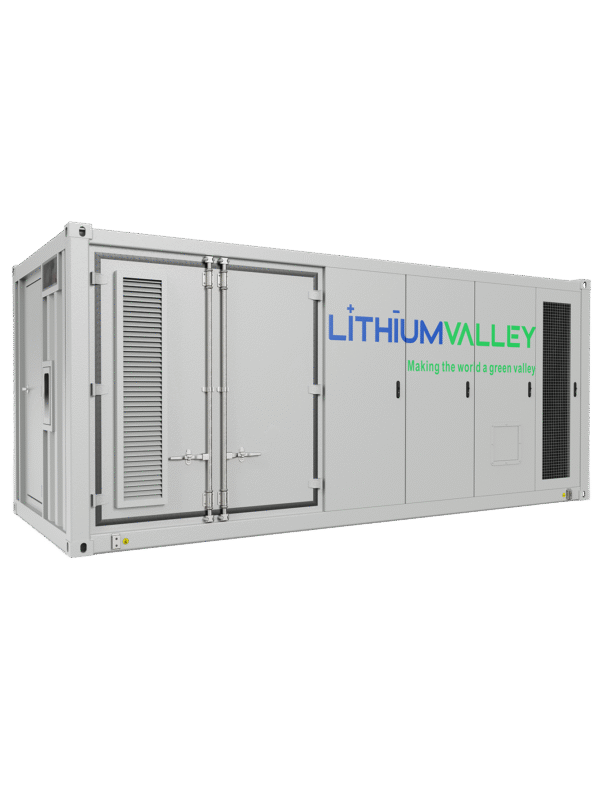

MV500-1000L-05G (Liquid cooling containerized BESS)

MV500-1000L-05G is a containerized Battery Energy Storage System (BESS) specifically designed for commercial and industrial energy storage applications. This system features a 500kW output power and 1MWh usable battery capacity, making it suitable for a wide range of scenarios such as peak shaving and valley filling, backup power supply, reducing demand charges, and integrating renewable energy. It helps users optimize energy costs and efficiently manage power systems.

The system utilizes liquid cooling technology and is equipped with multiple safety protection mechanisms as well as an intelligent Energy Management System (EMS). This ensures operational stability and extends battery life while achieving efficient energy dispatch and control. It is particularly suitable for deployment in industrial parks, logistics centers, microgrids, and large-scale commercial complexes, meeting diverse energy storage needs.

Model

MV500-1000L-05G

Nominal energy

1044kwh

Rated Power

500kw

Nominal Voltage

832V

Operating Voltage

702V – 949V

Dimension(W*D*H)

6058×2438×2896 mm

IP Rating

IP54

Certifcation

Cycle life

IEC/EN 62619, IEC/EN 61000, UN3536, UN38.3, MSDS

≥8000(@25℃,0.5C)

Download File
Inquiry/Request a Quote

FEATURES

Safe Technology

Flexible and Expandable

Higher Efficiency

Energy Management System

Compatible List of inverters Brands

:
:
:
:
:
:
