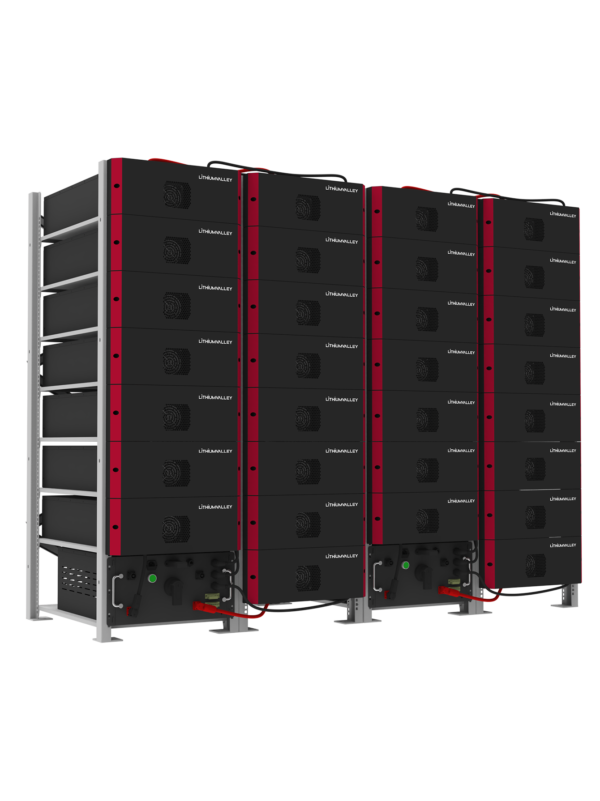

Indoor C&I ESS
Indoor C&I ESS
Back to products

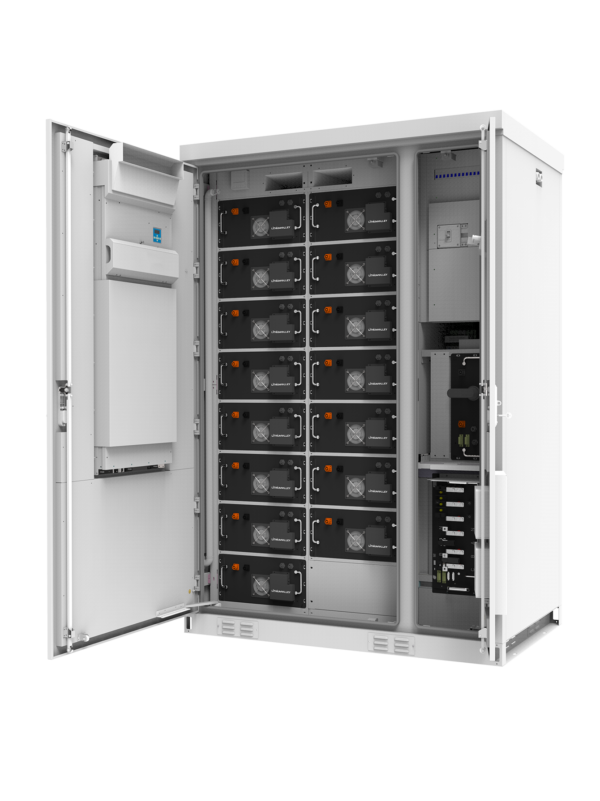

Outdoor C&I Cabinet (Built-in PCS)
Outdoor C&I Cabinet (Built-in PCS)

Full Liquid Cooling System

Cabinet-Type Energy Storage Systems with 208kWh / 156kWh Capacity for Industrial and Commercial Applications.

The SC208L50P-06W and SC156L50P-06W are high-capacity, cabinet-type C&I battery energy storage systems (BESS) designed for medium- to high-load applications. Each system integrates advanced LiFePO₄ battery modules, a 50kW bidirectional PCS, and optional EMS, delivering robust performance for use cases like peak shaving, renewable energy buffering, and power continuity in critical operations.

These fully integrated systems combine safety, scalability, and smart control — ideal for energy-intensive buildings, EV charging stations, industrial facilities, and microgrid deployments.

Model

SC208L50P-06W / SC156L50P-06W

Nominal Energy

208kwh/156KWh

Rated Power

50kw

Nominal Voltage

665.6V

Operating Voltage

582.4~759.2V

Dimension(W*D*H)

1300×1450×1890mm

Cycle life

≥8000(@25℃,0.5C)

IP Rating

Certifcation

IP54

IEC/EN 62619,IEC/EN 61000,UN38.3,MSDS

Download File
Inquiry/Request a Quote

FEATURES

Two Configurations Available
208kWh/156kWh

50kW Bidirectional PCS
Grid-connected and islanding capability

Liquid Cooling System
Enhanced thermal control for long-term performance

Built-in Safety Protections
Short circuit, overvoltage, overtemperature, insulation monitoring

IP54 Cabinet Enclosure
Designed for both indoor and protected outdoor installations

Flexible Communication
RS485, CAN, Modbus, Ethernet

Optional Fire Suppression System
For enhanced risk control

Integrated BMS
ensures real-time monitoring and active cell protection

Applications:

Peak demand charge reduction

Peak demand charge reduction

Backup power for factories and logistics hubs

Backup power for factories and logistics hubs

Solar PV integration and self-consumption optimization

Solar PV integration and self-consumption optimization

EV charging infrastructure support

EV charging infrastructure support

Microgrid and off-grid hybrid systems

Microgrid and off-grid hybrid systems

Energy security for data centers, campuses, or hospitals

Energy security for data centers, campuses, or hospitals
