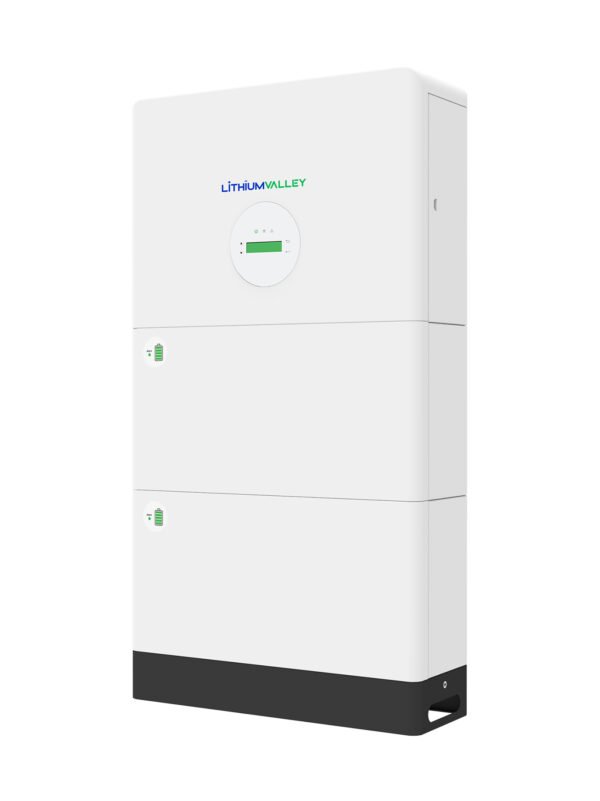

LV5000W LE(All-In-One Stackable ESS )
LV5000W LE(All-In-One Stackable ESS )
Back to products
25.6V 100AH
25.6V 100AH

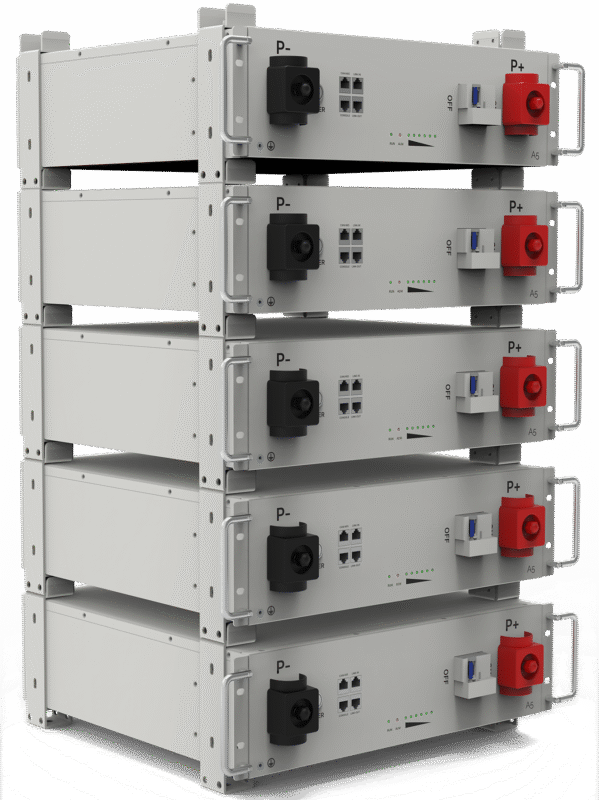

A5（3U Rack Mount Battery）

A5 is a high-performance, modular home energy storage solution designed to meet diverse household energy needs. Equipped with  A+ grade lithium cells, the system features automated battery distribution, removing the need for manual connections and streamlining the installation process. Through advanced Battery Management System (BMS), the system ensures reliable energy storage and real-time monitoring of battery performance and state of charge (SOC).

With a lifespan of 6,000 cycles, it provides long-lasting energy security and is an ideal solution for solar homes and residential energy systems.

Model

A5

Capacity

5.12 kWh

Installation

Rack mount

Operating Voltage

44.8~56.16V

Dimension(L x W x D)

17.7×17.4×5.2in(450*444*133mm)

Operating Temperature

-4°F to 122°F (-20°C to 50°C)

IP Rating

IP 20

Communication Interfaces

CAN/RS485/RS232

Download File
Inquiry/Request a Quote

FEATURES

Automated Battery Distribution

No need for manual connections, ensuring efficient and hassle-free setup

Smart Monitoring

Real-time monitoring of battery performance via BMS, allowing users to track SOC and performance metrics remotely

Longer Lifespan & Safety

A+ lithium cells with 6,000 cycles at 80% DOD, ensuring longevity and reliability.

Scalable Design

Easily expandable to meet evolving energy needs, supporting up to 12 units in parallel for scalable power storage

High Efficiency

Charge and discharge efficiency up to 100%, with a peak discharge of 100A for efficient energy management

Certified Standards

Compliant with UL1973, UL9540A, ensuring safety and quality for residential energy systems

Compatible List of inverters Brands

:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:

RELATED PRODUCTS

25.6V 200AH

This product has a built-in BMS management system, which can independently realize all kinds of protection as well as protection
Read more

LV36100

The lithium-ion battery packs feature an integrated golf cart battery system, designed to serve as replacements for lead-acid batteries. They offer a seamless drop-in replacement compatible with vehicles such as Club Car and EZ-GO.
Read more

LV-BAT-W5.12Ac (Wall-Mounted Battery)

The LV-BAT-W5.12Ac is a high-quality wall-mounted home solar lithium battery, built with premium-grade LiFePO4 (Lithium Iron Phosphate) cells for exceptional safety, stability, and longevity. Designed for modern residential applications, it offers 5.12kWh of reliable energy storage, ensuring uninterrupted power for your home during outages or peak demand periods.

Its advanced Battery Management System (BMS) continuously monitors and optimizes performance in real time, providing comprehensive protection against overcharge, over-discharge, and extreme temperature conditions. The system is also compatible with hybrid on-grid and off-grid inverters from multiple brands, offering flexible operation modes.

Read more

12.8V300AH

This product has a built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.
Read more

W8-5C （Wall-Mounted Sodium-ion Home Battery）

The W8-5C is a next-generation wall-mounted home energy storage battery powered by advanced sodium-ion (Na-ion) technology. With 7.68kWh of usable energy and a long cycle life of over 8000 cycles, this system provides a safe, cost-effective, and maintenance-friendly solution for modern solar-powered homes.Designed for seamless compatibility with mainstream hybrid and off-grid inverters, the W8-5C is built with BLE remote monitoring, aerosol fire suppression, and supports up to 20 units in parallel, scaling up to a massive 153.6kWh for larger energy demands.
Read more

LV2500W HB(All-In-One Stackable ESS)

The Lithium Valley LV25000W  is an all-in-one solar and storage solution that seamlessly integrates the inverter, battery charger, UPS-level switching, and battery enclosure into a pre-wired modular system. Designed for fast installation and maximum reliability, it reduces setup time by up to 50%.

Its IP65-rated outdoor design ensures excellent performance in all weather conditions, while the modular, scalable architecture allows capacity expansion from 7.68kWh to 25.6kWh. Built-in aerosol fire extinguishing devices and advanced safety protections provide peace of mind for residential, commercial, and industrial applications.

Read more

    FREQUENTLY ASKED
    QUESTIONS

    Q1: How safe are lithium batteries for energy storage?

    A1: Our lithium batteries are designed with multiple safety features, including overcharge protection, thermal management, and advanced battery management systems (BMS). We prioritize safety by adhering to international standards and offering IP-rated enclosures for maximum reliability and protection.

    Q2: What maintenance is required for lithium battery energy storage systems?

    A2: Lithium batteries require minimal maintenance. Routine checks of the battery management system (BMS) and ensuring proper ventilation for the system are generally sufficient. Our products are designed for easy monitoring and remote management through smart apps for added convenience.

    Q3: Can I expand the capacity of my energy storage system in the future?

    A3: Yes, our lithium energy storage systems are modular and scalable, allowing you to expand the capacity by adding additional battery modules. This flexibility ensures you can meet increasing energy demands over time without replacing the entire system.

    Q4: Are lithium batteries environmentally friendly?

    A4: Yes, lithium batteries are a sustainable option for energy storage. They are highly efficient, have a long lifespan, and can be recycled at the end of their life. Additionally, they help reduce dependence on fossil fuels by enabling renewable energy storage.
